1. Load Balancing Solution Architecture

You can configure Foreman server to use a load balancer to distribute client requests and network load across multiple Smart Proxy servers. This results in an overall performance improvement on Smart Proxy servers.

This guide outlines how to prepare Foreman server and Smart Proxy server for load balancing, and provides guidelines on how to configure a load balancer and register clients in a load-balanced setup.

A load-balanced setup consists of the following components:

  • Foreman server

  • Two or more Smart Proxy servers

  • A load balancer

  • Multiple clients

The graphics in this section are Red Hat illustrations. Non-Red Hat illustrations are welcome. If you want to contribute alternative images, raise a pull request in the Foreman Documentation GitHub page. Note that in Red Hat terminology, "Satellite" refers to Foreman and "Capsule" refers to Smart Proxy.

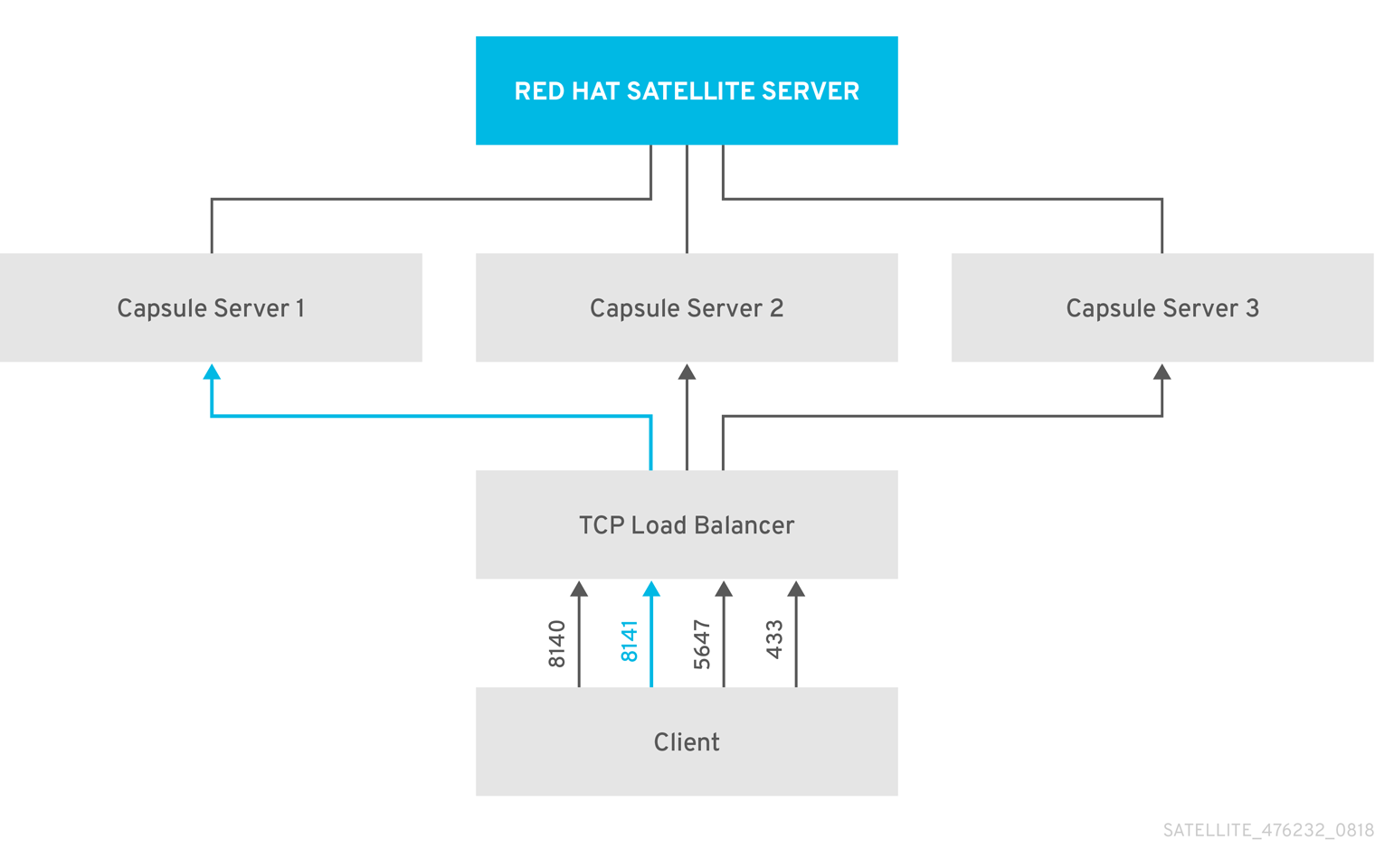

Load Balancing Solution Architecture
Figure 1. Foreman Load Balancing Solution Architecture

In a load-balanced setup, nearly all Smart Proxy functionality continues to work as expected when one Smart Proxy server is down, for planned or unplanned maintenance. Load balancer works with the following services and features:

  • Registration using subscription-manager

  • Content Management with yum repositories

  • Optional: Puppet

Note
In the load-balanced setup, a load balancer distributes load only for the services and features mentioned above. If other services, such as provisioning or virt-who, are running on the individual Smart Proxies, you must access them directly through Smart Proxies and not through the load balancer.
Managing Puppet Limitations

Puppet Certificate Authority (CA) management does not support certificate signing in a load-balanced setup. Puppet CA stores certificate information, such as the serial number counter and CRL, on the file system. Multiple writer processes that attempt to use the same data can corrupt it.

To manage this Puppet limitation, complete the following steps:

  1. Configure Puppet certificate signing on one Smart Proxy server, typically the first system where you configure Smart Proxy server for load balancing.

  2. Configure the clients to send CA requests to port 8141 on a load balancer.

  3. Configure a load balancer to redirect CA requests from port 8141 to port 8140 on the system where you configure Smart Proxy server to sign Puppet certificates.

2. Load Balancing Considerations

Distributing load between several Smart Proxy servers prevents any one Smart Proxy from becoming a single point of failure. Configuring Smart Proxies to use a load balancer can provide resilience against planned and unplanned outages. This improves availability and responsiveness.

Consider the following guidelines when configuring load balancing:

  • If you use Puppet, Puppet certificate signing is assigned to the first Smart Proxy that you configure. If the first Smart Proxy is down, clients cannot obtain Puppet content.

  • This solution does not use Pacemaker or other similar HA tools to maintain one state across all Smart Proxies. To troubleshoot issues, reproduce the issue on each Smart Proxy, bypassing the load balancer.

Additional Maintenance Required for Load Balancing

Configuring Smart Proxies to use a load balancer results in a more complex environment and requires additional maintenance.

The following additional steps are required for load balancing:

  • You must ensure that all Smart Proxies have the same Content Views and synchronize all Smart Proxies to the same Content View versions

  • You must upgrade each Smart Proxy in sequence

  • You must backup each Smart Proxy that you configure regularly

Upgrading Smart Proxy servers in a Load Balancing Configuration

There are no additional steps required for Smart Proxy servers in a load balancing configuration.

3. Prerequisites for Configuring Smart Proxy servers for Load Balancing

To configure Smart Proxy servers for load balancing, complete the following procedures described in Installing Smart Proxy server. Foreman does not support configuring existing Smart Proxy servers for load balancing.

4. Configuring Smart Proxy servers for Load Balancing

This chapter outlines how to configure Smart Proxy servers for load balancing. Proceed to one of the following sections depending on your Foreman server configuration:

Use different file names for the Katello certificates you create for each Smart Proxy server. For example, name the certificate archive file with Smart Proxy server FQDN.

4.1. Configuring Smart Proxy server with Default SSL Certificates for Load Balancing without Puppet

The following section describes how to configure Smart Proxy servers that use default SSL certificates for load balancing without Puppet.

Complete this procedure on each Smart Proxy server that you want to configure for load balancing.

Procedure
  1. On Foreman server, generate Katello certificates for Smart Proxy server, for example:

    # foreman-proxy-certs-generate \
    --foreman-proxy-fqdn smartproxy.example.com \
    --certs-tar "/root/smartproxy.example.com-certs.tar" \
    --foreman-proxy-cname loadbalancer.example.com

    Retain a copy of the example foreman-installer command that is output by the foreman-proxy-certs-generate command for installing Smart Proxy server certificate.

  2. Copy the certificate archive file from Foreman server to Smart Proxy server.

    # scp /root/smartproxy.example.com-certs.tar \
    root@smartproxy.example.com:/root/smartproxy.example.com-certs.tar
  3. Append the following options to the foreman-installer command that you obtain from the output of the foreman-proxy-certs-generate command.

    --certs-cname "loadbalancer.example.com" \
    --enable-foreman-proxy-plugin-remote-execution-ssh
  4. On Smart Proxy server, enter the foreman-installer command, for example:

    # foreman-installer --no-enable-foreman \
    --foreman-proxy-register-in-foreman "true" \
    --foreman-proxy-foreman-base-url "https://foreman.example.com" \
    --foreman-proxy-trusted-hosts "foreman.example.com" \
    --foreman-proxy-trusted-hosts "smartproxy.example.com" \
    --foreman-proxy-oauth-consumer-key "oauth key" \
    --foreman-proxy-oauth-consumer-secret "oauth secret" \
    --certs-tar-file "smartproxy.example.com-certs.tar" \
    --certs-cname "loadbalancer.example.com" \
    --enable-foreman-proxy-plugin-remote-execution-ssh

4.2. Configuring Smart Proxy server with Default SSL Certificates for Load Balancing with Puppet

The following section describes how to configure Smart Proxy servers that use default SSL certificates for load balancing with Puppet.

If you use Puppet in your Foreman configuration, you must complete the following procedures:

Configuring Smart Proxy server to Generate and Sign Puppet Certificates

Complete this procedure only for the system where you want to configure Smart Proxy server to generate and sign Puppet certificates for all other Smart Proxy servers that you configure for load balancing. In the examples in this procedure, the FQDN of this Smart Proxy server is smart-proxy-ca.example.com.

  1. On Foreman server, generate Katello certificates for the system where you configure Smart Proxy server to generate and sign Puppet certificates:

    # foreman-proxy-certs-generate \
    --foreman-proxy-fqdn smart-proxy-ca.example.com \
    --certs-tar "/root/smart-proxy-ca.example.com-certs.tar" \
    --foreman-proxy-cname loadbalancer.example.com

    Retain a copy of the example foreman-installer command that is output by the foreman-proxy-certs-generate command for installing Smart Proxy server certificate.

  2. Copy the certificate archive file from Foreman server to Smart Proxy server:

    # scp /root/smart-proxy-ca.example.com-certs.tar \
    root@smart-proxy-ca.example.com:smart-proxy-ca.example.com-certs.tar
  3. Append the following options to the foreman-installer command that you obtain from the output of the foreman-proxy-certs-generate command:

    --certs-cname "loadbalancer.example.com" \
    --puppet-dns-alt-names "loadbalancer.example.com" \
    --puppet-ca-server "smart-proxy-ca.example.com" \
    --foreman-proxy-puppetca "true" \
    --puppet-server-ca "true" \
    --enable-foreman-proxy-plugin-remote-execution-ssh
  4. On Smart Proxy server, enter the foreman-installer command, for example:

    # foreman-installer --no-enable-foreman \
    --foreman-proxy-register-in-foreman "true" \
    --foreman-proxy-foreman-base-url "https://foreman.example.com" \
    --foreman-proxy-trusted-hosts "foreman.example.com" \
    --foreman-proxy-trusted-hosts "smart-proxy-ca.example.com" \
    --foreman-proxy-oauth-consumer-key "oauth key" \
    --foreman-proxy-oauth-consumer-secret "oauth secret" \
    --certs-tar-file "smart-proxy-ca.example.com-certs.tar" \
    --puppet-server-foreman-url "https://foreman.example.com" \
    --certs-cname "loadbalancer.example.com" \
    --puppet-dns-alt-names "loadbalancer.example.com" \
    --puppet-ca-server "smart-proxy-ca.example.com" \
    --foreman-proxy-puppetca "true" \
    --puppet-server-ca "true" \
    --enable-foreman-proxy-plugin-remote-execution-script \
    --foreman-proxy-content-puppet true \
    --enable-puppet \
    --puppet-server true \
    --puppet-server-foreman-ssl-ca /etc/pki/katello/puppet/puppet_client_ca.crt \
    --puppet-server-foreman-ssl-cert /etc/pki/katello/puppet/puppet_client.crt \
    --puppet-server-foreman-ssl-key /etc/pki/katello/puppet/puppet_client.key
  5. On Smart Proxy server, stop the Puppet server:

    # puppet resource service puppetserver ensure=stopped
  6. Generate Puppet certificates for all other Smart Proxy servers that you configure for load balancing, except the first system where you configure Puppet certificates signing:

    # puppetserver ca generate --certname smartproxy.example.com \
    --subject-alt-names loadbalancer.example.com --ca-client

    This command creates the following files on the system where you configure Smart Proxy server to sign Puppet certificates:

    • /etc/puppetlabs/puppet/ssl/certs/ca.pem

    • /etc/puppetlabs/puppet/ssl/certs/smartproxy.example.com.pem

    • /etc/puppetlabs/puppet/ssl/private_keys/smartproxy.example.com.pem

    • /etc/puppetlabs/puppet/ssl/public_keys/smartproxy.example.com.pem

  7. Resume the Puppet server:

    # puppet resource service puppetserver ensure=running
Configuring Remaining Smart Proxy servers for Load Balancing

Complete this procedure on each Smart Proxy server excluding the system where you configure Smart Proxy server to sign Puppet certificates.

  1. On Foreman server, generate Katello certificates for Smart Proxy server:

    # foreman-proxy-certs-generate \
    --foreman-proxy-fqdn smartproxy.example.com \
    --certs-tar "/root/smartproxy.example.com-certs.tar" \
    --foreman-proxy-cname loadbalancer.example.com

    Retain a copy of the example foreman-installer command that is output by the foreman-proxy-certs-generate command for installing Smart Proxy server certificate.

  2. Copy the certificate archive file from Foreman server to Smart Proxy server:

    # scp /root/smartproxy.example.com-certs.tar \
    root@smartproxy.example.com:/root/smartproxy.example.com-certs.tar
  3. On Smart Proxy server, install the puppetserver package:

    # yum install puppetserver
  4. On Smart Proxy server, create directories for puppet certificates:

    # mkdir -p /etc/puppetlabs/puppet/ssl/certs/ \
    /etc/puppetlabs/puppet/ssl/private_keys/ \
    /etc/puppetlabs/puppet/ssl/public_keys/
  5. On Smart Proxy server, copy the Puppet certificates for this Smart Proxy server from the system where you configure Smart Proxy server to sign Puppet certificates:

    # scp root@smart-proxy-ca.example.com:/etc/puppetlabs/puppet/ssl/certs/ca.pem \
    /etc/puppetlabs/puppet/ssl/certs/ca.pem
    # scp root@smart-proxy-ca.example.com:/etc/puppetlabs/puppet/ssl/certs/smartproxy.example.com.pem \
    /etc/puppetlabs/puppet/ssl/certs/smartproxy.example.com.pem
    # scp root@smart-proxy-ca.example.com:/etc/puppetlabs/puppet/ssl/private_keys/smartproxy.example.com.pem \
    /etc/puppetlabs/puppet/ssl/private_keys/smartproxy.example.com.pem
    # scp root@smart-proxy-ca.example.com:/etc/puppetlabs/puppet/ssl/public_keys/smartproxy.example.com.pem \
    /etc/puppetlabs/puppet/ssl/public_keys/smartproxy.example.com.pem
  6. On Smart Proxy server, change the directory ownership to user puppet, group puppet and set the SELinux contexts:

    # chown -R puppet:puppet /etc/puppetlabs/puppet/ssl/
    # restorecon -Rv /etc/puppetlabs/puppet/ssl/
  7. Append the following options to the foreman-installer command that you obtain from the output of the foreman-proxy-certs-generate command:

    --certs-cname "loadbalancer.example.com" \
    --puppet-dns-alt-names "loadbalancer.example.com" \
    --puppet-ca-server "smart-proxy-ca.example.com" \
    --foreman-proxy-puppetca "false" \
    --puppet-server-ca "false" \
    --enable-foreman-proxy-plugin-remote-execution-ssh
  8. On Smart Proxy server, enter the foreman-installer command, for example:

    # foreman-installer --no-enable-foreman \
    --foreman-proxy-register-in-foreman "true" \
    --foreman-proxy-foreman-base-url "https://foreman.example.com" \
    --foreman-proxy-trusted-hosts "foreman.example.com" \
    --foreman-proxy-trusted-hosts "smartproxy.example.com" \
    --foreman-proxy-oauth-consumer-key "oauth key" \
    --foreman-proxy-oauth-consumer-secret "oauth secret" \
    --certs-tar-file "smartproxy.example.com-certs.tar" \
    --puppet-server-foreman-url "https://foreman.example.com" \
    --certs-cname "loadbalancer.example.com" \
    --puppet-dns-alt-names "loadbalancer.example.com" \
    --puppet-ca-server "smart-proxy-ca.example.com" \
    --foreman-proxy-puppetca "false" \
    --puppet-server-ca "false" \
    --enable-foreman-proxy-plugin-remote-execution-ssh

4.3. Configuring Smart Proxy server with Custom SSL Certificates for Load Balancing without Puppet

The following section describes how to configure Smart Proxy servers that use custom SSL certificates for load balancing without Puppet.

4.3.1. Creating Custom SSL Certificates for Smart Proxy server

This procedure outlines how to create a configuration file for the Certificate Signing Request and include the load balancer and Smart Proxy server as Subject Alternative Names (SAN). Complete this procedure on each Smart Proxy server that you want to configure for load balancing.

Procedure
  1. On Smart Proxy server, create a directory to contain all the source certificate files, accessible to only the root user:

    # mkdir /root/smart-proxy_cert
    # cd /root/smart-proxy_cert
  2. Create a private key with which to sign the Certificate Signing Request (CSR).

    Note that the private key must be unencrypted. If you use a password-protected private key, remove the private key password.

    If you already have a private key for this Smart Proxy server, skip this step.

    # openssl genrsa -out /root/smart-proxy_cert/smart-proxy_cert_key.pem 4096
  3. Create the certificate request configuration file with the following content:

    [ req ]
    default_bits       = 4096
    distinguished_name = req_distinguished_name
    req_extensions     = req_ext
    prompt = no

    [ req_distinguished_name ]
    countryName=2 Letter Country Code
    stateOrProvinceName=State or Province Full Name
    localityName=Locality Name
    0.organizationName=Organization Name
    organizationalUnitName=Smart Proxy Organization Unit Name
    commonName=smartproxy.example.com  (1)
    emailAddress=Email Address

    [ req_ext ]
    #authorityKeyIdentifier=keyid,issuer
    #basicConstraints=CA:FALSE
    keyUsage = digitalSignature, nonRepudiation, keyEncipherment, dataEncipherment
    subjectAltName = @alt_names

    [alt_names]                  (2)
    DNS.1 = loadbalancer.example.com
    DNS.2 = smartproxy.example.com
    1. The certificate’s common name must match the FQDN of Smart Proxy server. Ensure to change this when running the command on each Smart Proxy server that you configure for load balancing. You can also set a wildcard value *. If you set a wildcard value, you must add the -t foreman-proxy option when you use the katello-certs-check command.

    2. Under [alt_names], include the FQDN of the load balancer as DNS.1 and the FQDN of Smart Proxy server as DNS.2.

  4. Create a Certificate Signing Request (CSR) for the SAN certificate.

    # openssl req -new \
    -key /root/smart-proxy_cert/smart-proxy_cert_key.pem \ (1)
    -config SAN_config.cfg \                   (2)
    -out /root/smart-proxy_cert/smart-proxy_cert_csr.pem   (3)
    1. Smart Proxy server’s private key, used to sign the certificate

    2. The certificate request configuration file

    3. Certificate Signing Request file

  5. Send the certificate request to the Certificate Authority:

    When you submit the request, specify the lifespan of the certificate. The method for sending the certificate request varies, so consult the Certificate Authority for the preferred method. In response to the request, you can expect to receive a Certificate Authority bundle and a signed certificate, in separate files.

  6. Copy the Certificate Authority bundle and Smart Proxy server certificate file that you receive from the Certificate Authority, and Smart Proxy server private key to your Foreman server.

  7. On Foreman server, validate Smart Proxy server certificate input files:

    # katello-certs-check \
    -c /root/smart-proxy_cert/smart-proxy_cert.pem \      (1)
    -k /root/smart-proxy_cert/smart-proxy_cert_key.pem \  (2)
    -b /root/smart-proxy_cert/ca_cert_bundle.pem      (3)
    1. Smart Proxy server certificate file, provided by your Certificate Authority

    2. Smart Proxy server’s private key that you used to sign the certificate

    3. Certificate Authority bundle, provided by your Certificate Authority

      If you set the commonName= to a wildcard value *, you must add the -t foreman-proxy option to the katello-certs-check command.

      Retain a copy of the example foreman-proxy-certs-generate command that is output by the katello-certs-check command for creating the Certificate Archive File for this Smart Proxy server.

4.3.2. Configuring Smart Proxy server with Custom SSL Certificates for Load Balancing without Puppet

Complete this procedure on each Smart Proxy server that you want to configure for load balancing.

Procedure
  1. Append the following option to the foreman-proxy-certs-generate command that you obtain from the output of the katello-certs-check command:

    --foreman-proxy-cname loadbalancer.example.com
  2. On Foreman server, enter the foreman-proxy-certs-generate command to generate Smart Proxy certificates. For example:

    # foreman-proxy-certs-generate \
    --foreman-proxy-fqdn smartproxy.example.com \
    --certs-tar /root/smart-proxy_cert/smart-proxy.tar \
    --server-cert /root/smart-proxy_cert/smart-proxy.pem \
    --server-key /root/smart-proxy_cert/smart-proxy.pem \
    --server-ca-cert /root/smart-proxy_cert/ca_cert_bundle.pem \
    --foreman-proxy-cname loadbalancer.example.com

    Retain a copy of the example foreman-installer command from the output for installing Smart Proxy server certificates.

  3. Copy the certificate archive file from Foreman server to Smart Proxy server:

    # scp /root/smartproxy.example.com-certs.tar \
    root@smartproxy.example.com:smartproxy.example.com-certs.tar
  4. Append the following options to the foreman-installer command that you obtain from the output of the foreman-proxy-certs-generate command.

    --certs-cname "loadbalancer.example.com" \
    --enable-foreman-proxy-plugin-remote-execution-ssh
  5. On Smart Proxy server, enter the foreman-installer command, for example:

    # foreman-installer --no-enable-foreman \
    --foreman-proxy-register-in-foreman "true" \
    --foreman-proxy-foreman-base-url "https://foreman.example.com" \
    --foreman-proxy-trusted-hosts "foreman.example.com" \
    --foreman-proxy-trusted-hosts "smartproxy.example.com" \
    --foreman-proxy-oauth-consumer-key "oauth key" \
    --foreman-proxy-oauth-consumer-secret "oauth secret" \
    --certs-tar-file "smartproxy.example.com-certs.tar" \
    --certs-cname "loadbalancer.example.com" \
    --enable-foreman-proxy-plugin-remote-execution-ssh

4.4. Configuring Smart Proxy server with Custom SSL Certificates for Load Balancing with Puppet

The following section describes how to configure Smart Proxy servers that use custom SSL certificates for load balancing with Puppet.

4.4.1. Creating Custom SSL Certificates for Smart Proxy server

This procedure outlines how to create a configuration file for the Certificate Signing Request and include the load balancer and Smart Proxy server as Subject Alternative Names (SAN). Complete this procedure on each Smart Proxy server that you want to configure for load balancing.

Procedure
  1. On Smart Proxy server, create a directory to contain all the source certificate files, accessible to only the root user:

    # mkdir /root/smart-proxy_cert
    # cd /root/smart-proxy_cert
  2. Create a private key with which to sign the Certificate Signing Request (CSR).

    Note that the private key must be unencrypted. If you use a password-protected private key, remove the private key password.

    If you already have a private key for this Smart Proxy server, skip this step.

    # openssl genrsa -out /root/smart-proxy_cert/smart-proxy.pem 4096
  3. Create the certificate request configuration file with the following content:

    [ req ]
    default_bits       = 4096
    distinguished_name = req_distinguished_name
    req_extensions     = req_ext
    prompt = no

    [ req_distinguished_name ]
    countryName=2 Letter Country Code
    stateOrProvinceName=State or Province Full Name
    localityName=Locality Name
    0.organizationName=Organization Name
    organizationalUnitName=Smart Proxy Organization Unit Name
    commonName=smartproxy.example.com  (1)
    emailAddress=Email Address

    [ req_ext ]
    #authorityKeyIdentifier=keyid,issuer
    #basicConstraints=CA:FALSE
    keyUsage = digitalSignature, nonRepudiation, keyEncipherment, dataEncipherment
    subjectAltName = @alt_names

    [alt_names]                  (2)
    DNS.1 = loadbalancer.example.com
    DNS.2 = smartproxy.example.com
    1. The certificate’s common name must match the FQDN of Smart Proxy server. Ensure to change this when running the command on each Smart Proxy server. You can also set a wildcard value *. If you set a wildcard value, you must add the -t foreman-proxy option when you use the katello-certs-check command.

    2. Under [alt_names], include the FQDN of the load balancer as DNS.1 and the FQDN of Smart Proxy server as DNS.2.

  4. Create a Certificate Signing Request (CSR) for the SAN certificate:

    # openssl req -new \
    -key /root/smart-proxy_cert/smart-proxy.pem \ (1)
    -config SAN_config.cfg \          (2)
    -out /root/smart-proxy_cert/smart-proxy.pem   (3)
    1. Smart Proxy server’s private key, used to sign the certificate

    2. The certificate request configuration file

    3. Certificate Signing Request file

  5. Send the certificate request to the Certificate Authority:

    When you submit the request, specify the lifespan of the certificate. The method for sending the certificate request varies, so consult the Certificate Authority for the preferred method. In response to the request, you can expect to receive a Certificate Authority bundle and a signed certificate, in separate files.

  6. Copy the Certificate Authority bundle and Smart Proxy server certificate file that you receive from the Certificate Authority, and Smart Proxy server private key to your Foreman server to validate them.

  7. On Foreman server, validate Smart Proxy server certificate input files:

    # katello-certs-check \
    -c /root/smart-proxy_cert/smart-proxy.pem \      (1)
    -k /root/smart-proxy_cert/smart-proxy.pem \      (2)
    -b /root/smart-proxy_cert/ca_cert_bundle.pem (3)
    1. Smart Proxy server certificate file, provided by your Certificate Authority

    2. Smart Proxy server’s private key that you used to sign the certificate

    3. Certificate Authority bundle, provided by your Certificate Authority

      + If you set the commonName= to a wildcard value *, you must add the -t foreman-proxy option to the katello-certs-check command.

      + Retain a copy of the example foreman-proxy-certs-generate command that is output by the katello-certs-check command for creating the Certificate Archive File for this Smart Proxy server.

4.4.2. Configuring Smart Proxy server with Custom SSL Certificates for Load Balancing with Puppet

If you use Puppet in your Foreman configuration, then you must complete the following procedures:

Configuring Smart Proxy server to Generate and Sign Puppet Certificates

Complete this procedure only for the system where you want to configure Smart Proxy server to generate Puppet certificates for all other Smart Proxy servers that you configure for load balancing. In the examples in this procedure, the FQDN of this Smart Proxy server is smart-proxy-ca.example.com.

  1. Append the following option to the foreman-proxy-certs-generate command that you obtain from the output of the katello-certs-check command:

    --foreman-proxy-cname loadbalancer.example.com
  2. On Foreman server, enter the foreman-proxy-certs-generate command to generate Smart Proxy certificates. For example:

    # foreman-proxy-certs-generate \
    --foreman-proxy-fqdn smart-proxy-ca.example.com \
    --certs-tar /root/smart-proxy_cert/smart-proxy-ca.tar \
    --server-cert /root/smart-proxy_cert/smart-proxy-ca.pem \
    --server-key /root/smart-proxy_cert/smart-proxy-ca.pem \
    --server-ca-cert /root/smart-proxy_cert/ca_cert_bundle.pem \
    --foreman-proxy-cname loadbalancer.example.com

    Retain a copy of the example foreman-installer command from the output for installing Smart Proxy server certificates.

  3. Copy the certificate archive file from Foreman server to Smart Proxy server.

  4. Append the following options to the foreman-installer command that you obtain from the output of the foreman-proxy-certs-generate command:

    --puppet-dns-alt-names "loadbalancer.example.com" \
    --puppet-ca-server "smart-proxy-ca.example.com" \
    --foreman-proxy-puppetca "true" \
    --puppet-server-ca "true" \
    --enable-foreman-proxy-plugin-remote-execution-ssh
  5. On Smart Proxy server, enter the foreman-installer command, for example:

    foreman-installer --no-enable-foreman \
    --foreman-proxy-register-in-foreman "true" \
    --foreman-proxy-foreman-base-url "https://foreman.example.com" \
    --foreman-proxy-trusted-hosts "foreman.example.com" \
    --foreman-proxy-trusted-hosts "smart-proxy-ca.example.com" \
    --foreman-proxy-oauth-consumer-key "oauth key" \
    --foreman-proxy-oauth-consumer-secret "oauth secret" \
    --certs-tar-file "certs.tgz" \
    --puppet-server-foreman-url "https://foreman.example.com" \
    --certs-cname "loadbalancer.example.com" \
    --puppet-dns-alt-names "loadbalancer.example.com" \
    --puppet-ca-server "smart-proxy-ca.example.com" \
    --foreman-proxy-puppetca "true" \
    --puppet-server-ca "true" \
    --enable-foreman-proxy-plugin-remote-execution-script \
    --foreman-proxy-content-puppet true \
    --enable-puppet \
    --puppet-server true \
    --puppet-server-foreman-ssl-ca /etc/pki/katello/puppet/puppet_client_ca.crt \
    --puppet-server-foreman-ssl-cert /etc/pki/katello/puppet/puppet_client.crt \
    --puppet-server-foreman-ssl-key /etc/pki/katello/puppet/puppet_client.key
  6. On Smart Proxy server, generate Puppet certificates for all other Smart Proxies that you configure for load balancing, except this first system where you configure Puppet certificates signing:

    # puppet cert generate smartproxy.example.com \
    --dns_alt_names=loadbalancer.example.com

    This command creates the following files on the Puppet certificate signing Smart Proxy server instance:

    • /etc/puppetlabs/puppet/ssl/certs/ca.pem

    • /etc/puppetlabs/puppet/ssl/certs/smartproxy.example.com.pem

    • /etc/puppetlabs/puppet/ssl/private_keys/smartproxy.example.com.pem

    • /etc/puppetlabs/puppet/ssl/public_keys/smartproxy.example.com.pem

Configuring Remaining Smart Proxy servers for Load Balancing

Complete this procedure for each Smart Proxy server excluding the system where you configure Smart Proxy server to sign Puppet certificates.

  1. Append the following option to the foreman-proxy-certs-generate command that you obtain from the output of the katello-certs-check command:

    --foreman-proxy-cname loadbalancer.example.com
  2. On Foreman server, enter the foreman-proxy-certs-generate command to generate Smart Proxy certificates. For example:

    # foreman-proxy-certs-generate \
    --foreman-proxy-fqdn smartproxy.example.com \
    --certs-tar /root/smart-proxy_cert/smart-proxy.tar \
    --server-cert /root/smart-proxy_cert/smart-proxy.pem \
    --server-key /root/smart-proxy_cert/smart-proxy.pem \
    --server-ca-cert /root/smart-proxy_cert/ca_cert_bundle.pem \
    --foreman-proxy-cname loadbalancer.example.com

    Retain a copy of the example foreman-installer command from the output for installing Smart Proxy server certificates.

  3. Copy the certificate archive file from Foreman server to Smart Proxy server.

    # scp /root/smartproxy.example.com-certs.tar \
    root@smartproxy.example.com:smartproxy.example.com-certs.tar
  4. On Smart Proxy server, install the puppetserver package:

    # yum install puppetserver
  5. On Smart Proxy server, create directories for puppet certificates:

    # mkdir -p /etc/puppetlabs/puppet/ssl/certs/ \
    /etc/puppetlabs/puppet/ssl/private_keys/ \
    /etc/puppetlabs/puppet/ssl/public_keys/
  6. On Smart Proxy server, copy the Puppet certificates for this Smart Proxy server from the system where you configure Smart Proxy server to sign Puppet certificates:

    # scp root@smart-proxy-ca.example.com:/etc/puppetlabs/puppet/ssl/certs/ca.pem \
    /etc/puppetlabs/puppet/ssl/certs/ca.pem
    # scp root@smart-proxy-ca.example.com:/etc/puppetlabs/puppet/ssl/certs/smartproxy.example.com.pem \
    /etc/puppetlabs/puppet/ssl/certs/smartproxy.example.com.pem
    # scp root@smart-proxy-ca.example.com:/etc/puppetlabs/puppet/ssl/private_keys/smartproxy.example.com.pem \
    /etc/puppetlabs/puppet/ssl/private_keys/smartproxy.example.com.pem
    # scp root@smart-proxy-ca.example.com:/etc/puppetlabs/puppet/ssl/public_keys/smartproxy.example.com.pem \
    /etc/puppetlabs/puppet/ssl/public_keys/smartproxy.example.com.pem
  7. On Smart Proxy server, change the directory ownership to user puppet, group puppet and set the SELinux contexts:

    # chown -R puppet:puppet /etc/puppetlabs/puppet/ssl/
    # restorecon -Rv /etc/puppetlabs/puppet/ssl/
  8. Append the following options to the foreman-installer command that you obtain from the output of the foreman-proxy-certs-generate command:

    --certs-cname "loadbalancer.example.com" \
    --puppet-dns-alt-names "loadbalancer.example.com" \
    --puppet-ca-server "smart-proxy-ca.example.com" \
    --foreman-proxy-puppetca "false" \
    --puppet-server-ca "false" \
    --enable-foreman-proxy-plugin-remote-execution-ssh
  9. On Smart Proxy server, enter the foreman-installer command, for example:

    # foreman-installer --no-enable-foreman \
    --foreman-proxy-register-in-foreman "true" \
    --foreman-proxy-foreman-base-url "https://foreman.example.com" \
    --foreman-proxy-trusted-hosts "foreman.example.com" \
    --foreman-proxy-trusted-hosts "smartproxy.example.com" \
    --foreman-proxy-oauth-consumer-key "oauth key" \
    --foreman-proxy-oauth-consumer-secret "oauth secret" \
    --certs-tar-file "smartproxy.example.com-certs.tar" \
    --puppet-server-foreman-url "https://foreman.example.com" \
    --certs-cname "loadbalancer.example.com" \
    --puppet-dns-alt-names "loadbalancer.example.com" \
    --puppet-ca-server "smart-proxy-ca.example.com" \
    --foreman-proxy-puppetca "false" \
    --puppet-server-ca "false" \
    --enable-foreman-proxy-plugin-remote-execution-ssh

5. Installing the Load Balancer

The following example provides general guidance for configuring an HAProxy load balancer on a Red Hat Enterprise Linux server. However, you can install any suitable load balancing software solution that supports TCP forwarding.

  1. On a Red Hat Enterprise Linux 7 host, install HAProxy:

    # yum install haproxy
  2. Install the following package that includes the semanage tool:

    # yum install policycoreutils-python
  3. Configure SELinux to allow HAProxy to bind any port:

    # semanage boolean --modify --on haproxy_connect_any
  4. Configure the load balancer to balance the network load for the ports as described in Ports Configuration for the Load Balancer. For example, to configure ports for HAProxy, edit the /etc/haproxy/haproxy.cfg file to correspond with the table.

    Table 1. Ports Configuration for the Load Balancer
    Service Port Mode Balance Mode Destination

    HTTP

    80

    TCP

    roundrobin

    port 80 on all Smart Proxy servers

    HTTPS and RHSM

    443

    TCP

    source

    port 443 on all Smart Proxy servers

    AMQP

    5647

    TCP

    roundrobin

    port 5647 on all Smart Proxy servers

    Puppet (Optional)

    8140

    TCP

    roundrobin

    port 8140 on all Smart Proxy servers

    PuppetCA (Optional)

    8141

    TCP

    roundrobin

    port 8140 only on the system where you configure Smart Proxy server to sign Puppet certificates

    SmartProxy (Optional for OpenScap)

    9090

    TCP

    roundrobin

    port 9090 on all Smart Proxy servers

  5. Configure the load balancer to disable SSL offloading and allow client-side SSL certificates to pass through to back end servers. This is required because communication from clients to Smart Proxy servers depends on client-side SSL certificates.

  6. Start and enable the HAProxy service:

    # systemctl start haproxy
    # systemctl enable haproxy

6. Registering Clients

You can register a client running a Enterprise Linux 6, 7, or 8 operating system to Smart Proxy servers that you configure for load balancing. For more information about registering clients and configuring them to use Puppet, see Registering Hosts in the Managing Hosts guide.

To register clients, proceed to one of the following procedures:

6.1. Foreman host registration

You can register hosts with Foreman using the host registration feature, the Foreman API, or Hammer CLI.

Procedure
  1. In the Foreman web UI, navigate to Hosts > Register Host.

  2. Click Generate to create the registration command.

  3. Click on the files icon to copy the command to your clipboard.

  4. Log in to the host you want register and run the previously generated command.

  5. Update subscription manager configuration for rhsm.baseurl and server.hostname:

    # subscription-manager config \
    --rhsm.baseurl=https://loadbalancer.example.com/pulp/content \
    --server.hostname=loadbalancer.example.com
  6. Check the /etc/yum.repos.d/redhat.repo file and ensure that the appropriate repositories have been enabled.

CLI procedure
  1. Generate the host registration command using the Hammer CLI:

    # hammer host-registration generate-command

    If your hosts do not trust the SSL certificate of Foreman server, you can disable SSL validation by adding the --insecure flag to the registration command.

    # hammer host-registration generate-command \
    --insecure true
  2. Log in to the host you want register and run the previously generated command.

  3. Update subscription manager configuration for rhsm.baseurl and server.hostname:

    # subscription-manager config \
    --rhsm.baseurl=https://loadbalancer.example.com/pulp/content \
    --server.hostname=loadbalancer.example.com
  4. Check the /etc/yum.repos.d/redhat.repo file and ensure that the appropriate repositories have been enabled.

API procedure
  1. Generate the host registration command using the Foreman API:

    # curl -X POST https://foreman.example.com/api/registration_commands \
    --user "My_User_Name" \
    -H 'Content-Type: application/json'

    If your hosts do not trust the SSL certificate of Foreman server, you can disable SSL validation by adding the --insecure flag to the registration command.

    # curl -X POST https://foreman.example.com/api/registration_commands \
    --user "My_User_Name" \
    -H 'Content-Type: application/json' \
    -d '{ "registration_command": { "insecure": true }}'

    To enter a password as command line argument, use username:password syntax. Keep in mind this can save the password in the shell history.

    For more information about registration see Registering a Host to Foreman in Managing Hosts.

  2. Log in to the host you want register and run the previously generated command.

  3. Update subscription manager configuration for rhsm.baseurl and server.hostname:

    # subscription-manager config \
    --rhsm.baseurl=https://loadbalancer.example.com/pulp/content \
    --server.hostname=loadbalancer.example.com
  4. Check the /etc/yum.repos.d/redhat.repo file and ensure that the appropriate repositories have been enabled.

6.2. (Deprecated) Registering Clients Using the Bootstrap Script

To register clients, enter the following command on the client. You must complete the registration procedure for each client.

Prerequisite

Ensure that you install the bootstrap script on the client and change the script’s file permissions to executable. For more information, see Registering Hosts to Foreman Using The Bootstrap Script in the Managing Hosts guide.

  • On Enterprise Linux 8, enter the following command:

    # /usr/libexec/platform-python bootstrap.py \
    --login=admin \
    --server loadbalancer.example.com \
    --organization="My_Organization" \
    --location="My_Location" \
    --hostgroup="My_Hostgroup" \
    --activationkey="My_Activation_Key" \
    --enablerepos=https://yum.theforeman.org/client/3.1/el8/x86_64/foreman-client-release.rpm \
    --puppet-ca-port 8141 \    (1)
    --force                    (2)
    1. Include the --puppet-ca-port 8141 option if you use Puppet.

    2. Include the --force option to register the client that has been previously registered to a standalone Smart Proxy.

  • On Enterprise Linux 7, 6, or 5, enter the following command:

    # python bootstrap.py --login=admin \
    --server loadbalancer.example.com \
    --organization="My_Organization" \
    --location="My_Location" \
    --hostgroup="My_Hostgroup" \
    --activationkey="My_Activation_Key" \
    --enablerepos=https://yum.theforeman.org/client/3.1/el7/x86_64/foreman-client-release.rpm \
    --puppet-ca-port 8141 \    (1)
    --force                    (2)
    1. Include the --puppet-ca-port 8141 option if you use Puppet.

    2. Include the --force option to register the client that has been previously registered to a standalone Smart Proxy.

The script prompts for the password corresponding to the Foreman user name you entered with the --login option.

6.3. (Deprecated) Registering Clients Manually with katello-ca-consumer rpm

To register clients manually, complete the following procedure on each client that you register.

Procedure
  1. Remove the katello-ca-consumer package if it is installed:

    # yum remove 'katello-ca-consumer*'
  2. Install the katello-ca-consumer package from the load balancer:

    # rpm -Uvh http://loadbalancer.example.com/pub/katello-ca-consumer-latest.noarch.rpm
  3. Register the client and include the --serverurl and --baseurl options:

    # subscription-manager register \
    --activationkey=My_Activation_Key \
    --baseurl=https://loadbalancer.example.com/pulp/content/ \
    --org=Your_Organization \
    --serverurl=https://loadbalancer.example.com/rhsm

7. Verifying the Load Balancing Configuration

You can verify the load balancing configuration by completing the following steps for each Smart Proxy server that you configure:

  1. Shut down the base operating system for your Smart Proxy server.

  2. Verify that content or subscription management features are available on the client registered to this Smart Proxy. For example, enter the subscription-manager refresh command on the client.

  3. Restart the base operating system for your Smart Proxy server.

8. Propagating SCAP Content through the Load Balancer

If you use OpenSCAP to manage security compliance on your clients, you must configure the SCAP client to send ARF reports to the load balancer instead of Smart Proxy. The configuration procedure depends on the method you have selected to deploy compliance policies.

8.1. Propagating SCAP Content using Ansible Deployment

Using this procedure, you can promote Security Content Automation Protocol (SCAP) content through the load balancer in the scope of the Ansible deployment method.

Prerequisite
Procedure
  1. In the Foreman web UI, navigate to Configure > Variables.

  2. Search for the foreman_scap_client_port variable and click its name.

  3. In the Default Behavior area, ensure that the Override checkbox is selected.

  4. In the Parameter Type list, ensure that integer is selected.

  5. In the Default Value field, enter 8443.

  6. In the Specify Matchers area, remove all matchers that override the default value.

  7. Click Submit.

  8. Search for the foreman_scap_client_server variable and click its name.

  9. In the Default Behavior area, ensure that the Override checkbox is selected.

  10. In the Parameter Type list, ensure that string is selected.

  11. In the Default Value field, enter the FQDN of your load balancer, such as loadbalancer.example.com.

  12. In the Specify Matchers area, remove all matchers that override the default value.

  13. Click Submit.

  14. Continue with deploying a compliance policy using Ansible. For more information, see:

Verification
  • On the client, verify that the /etc/foreman_scap_client/config.yaml file contains the following lines:

    # Foreman proxy to which reports should be uploaded
    :server: 'loadbalancer.example.com'
    :port: 8443

8.2. Propagating SCAP Content using Puppet Deployment

Using this procedure, you can promote Security Content Automation Protocol (SCAP) content through the load balancer in the scope of the Puppet deployment method.

Prerequisite
Procedure
  1. In the Foreman web UI, navigate to Configure > Classes and click foreman_scap_client.

  2. Click the Smart Class Parameter tab.

  3. In the pane to the left of the Smart Class Parameter window, click port.

  4. In the Default Behavior area, select the Override checkbox.

  5. From the Key Type list, select integer.

  6. In the Default Value field, enter 8443.

  7. In the pane to the left of the Smart Class Parameter window, click server.

  8. In the Default Behavior area, select the Override checkbox.

  9. From the Key Type list, select string.

  10. In the Default Value field, enter the FQDN of your load balancer, such as loadbalancer.example.com.

  11. In the lower left of the Smart Class Parameter window, click Submit.

  12. Continue with deploying a compliance policy using Puppet. For more information, see:

Verification
  • On the client, verify that the /etc/foreman_scap_client/config.yaml file contains the following lines:

    # Foreman proxy to which reports should be uploaded
    :server: 'loadbalancer.example.com'
    :port: 8443
